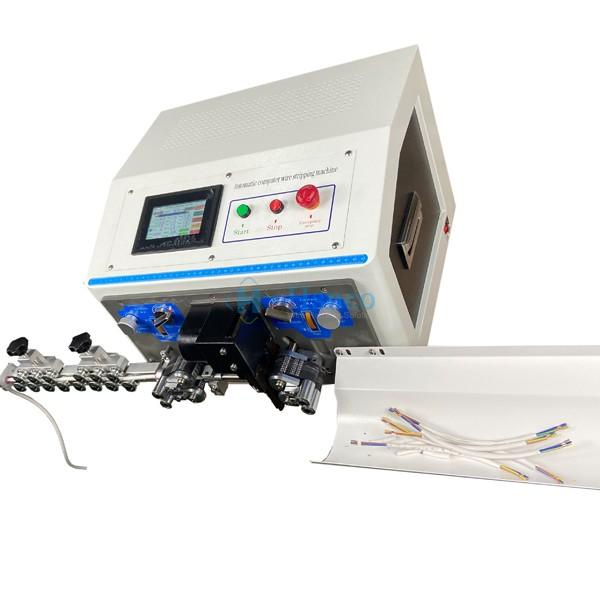

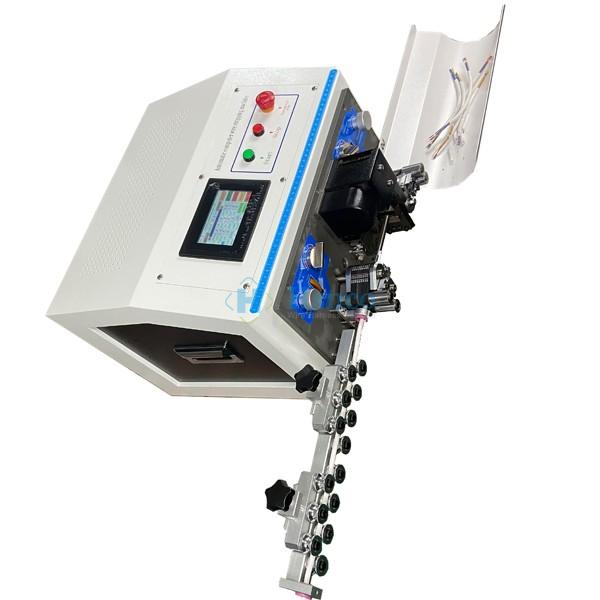

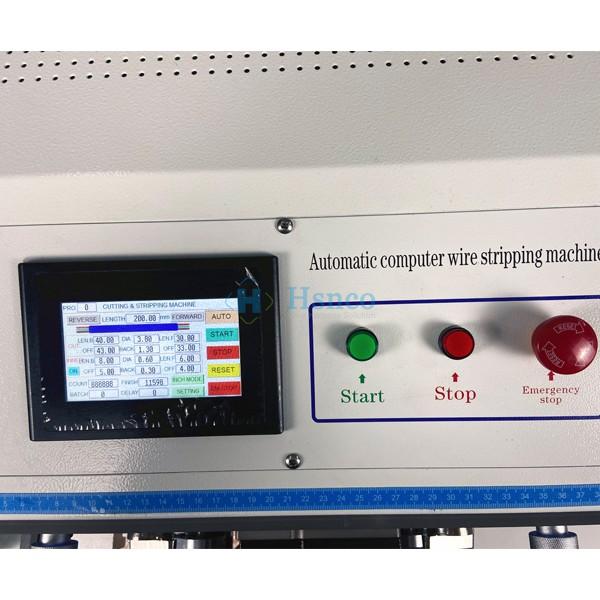

Automatic Multi Core Inner wires & Outside Jacket Stripping Machine HS-BX905B-1 Max outside jacket O.D. 6mm

Automatic Multi Core Inner wires & Outside Jacket Stripping Machine HS-BX905B-1 Max outside jacket O.D. 6mm

Model No.: HS-BX905B-1
Wire Range: 2 Conductor-4 Conductor / Max outside jacket O.D. 6mm
Cutting Length: 0-99999mm
Separate Length: 1-99999mm
Wire Guide Size I.D.: 3mm, 5mm, 6mm, 8mm
Stripping Inner Length: Front 1-30mm / End 1-30mm
Stripping Jacket Length: Front 1-150mm / End 1-70mm
Stripping Drive Mode: Belts driving

https://www.youtube.com/watch?v=V7yjEV5LEVU

Automatic Multi Core Inner wires & Outside Jacket Stripping Machine HS-BX905B-1 Max outside jacket O.D. 6mm with Belts Driving

Product Specification:

Model No.	HS-BX905B-1
Wire Range	2 Conductor-4 Conductor Max outside jacket O.D. 6mm
Cutting Length	0-99999mm
Separate Length	1-99999mm
Wire Guide Size I.D.	3mm, 5mm, 6mm, 8mm
Stripping Inner Length	Front 1-30mm / End 1-30mm
Stripping Jacket Length	Front 1-150mm / End 1-70mm
Stripping Drive Mode	Belts driving
Blade	High speed steel
Speed Adjust	1-9
Power	AC220V AC110V
Tolerance	±0.2%*Length
Machine Weight	35kg
