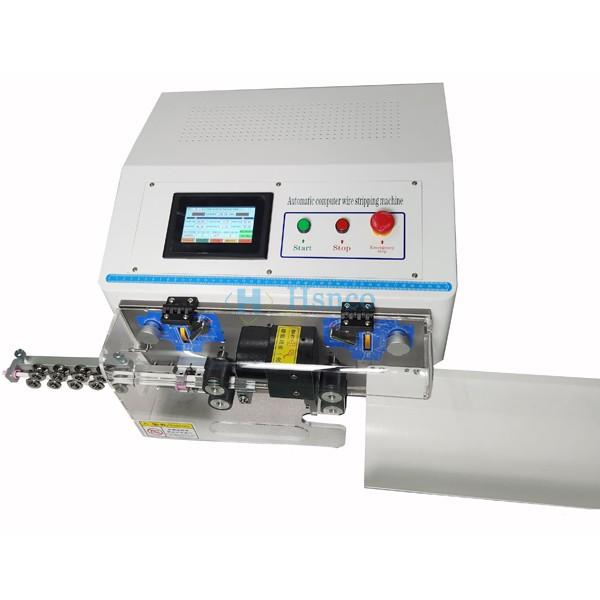

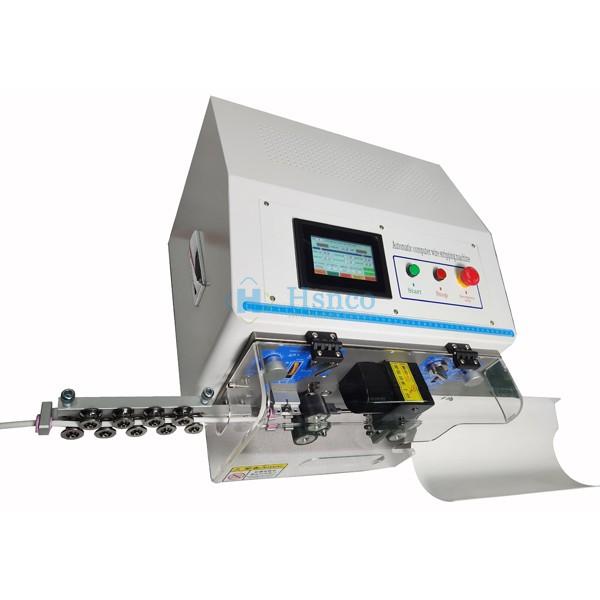

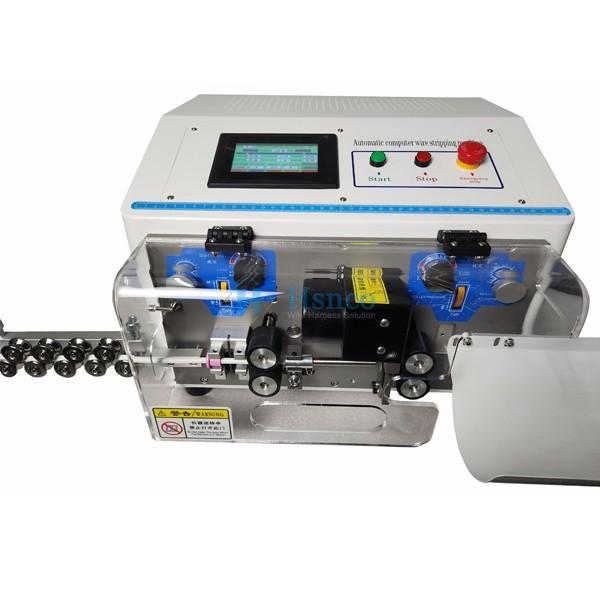

Automatic Single Core & Multi Core Outside Jacket Cutting & Stripping Machine HS-BXH04 1mm²- 10mm² / 2x0.5mm²-3x1mm²

Automatic Single Core & Multi Core Outside Jacket Cutting & Stripping Machine HS-BXH04 1mm²- 10mm² / 2x0.5mm²-3x1mm²

Model No.: HS-BXH04
Wire Range: 1mm²- 10mm² / 2x0.5mm²-3x1mm² max cable O.D. 7mm
Cutting Length: 0-99999mm
Stripping Length: Front 1-150mm / End 1-80mm
Wire Guide Size I.D.: 4mm, 6mm, 8mm, 10mm

https://www.youtube.com/watch?v=mf31Sa8hqqE

Automatic Single Core & Multi Core Outside Jacket Cutting & Stripping Machine HS-BXH04 1mm²- 10mm² / 2x0.5mm²-3x1mm²

Product Specification:

Model No.	HS-BXH04
Wire Range	1mm²- 10mm² 2x0.5mm²-3x1mm² max cable O.D. 7mm
Cutting Length	0-99999mm
Stripping Length	Front 1-150mm / End 1-80mm
Wire Guide Size I.D.	4mm, 6mm, 8mm, 10mm
Stripping Drive Mode	4 wheel drive
Wire Material	PVC, Telfon, Glass wire...
Blade	High speed steel
Speed Adjust	1-9
Power	AC220V AC110V
Tolerance	±0.2%*Length
Machine Weight	34kg
