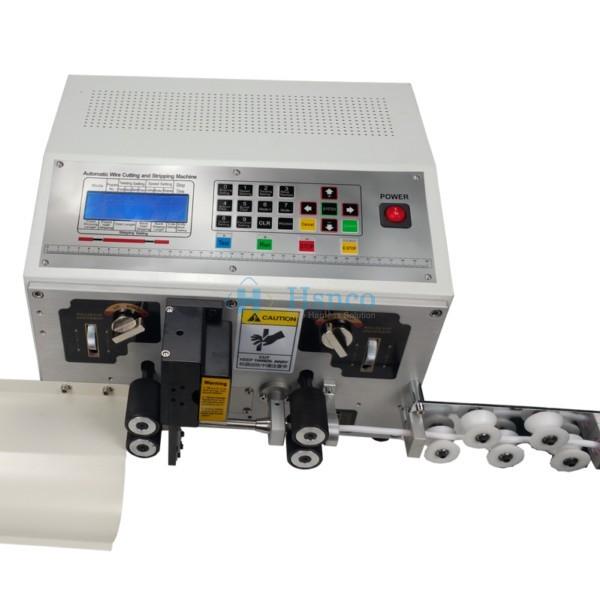

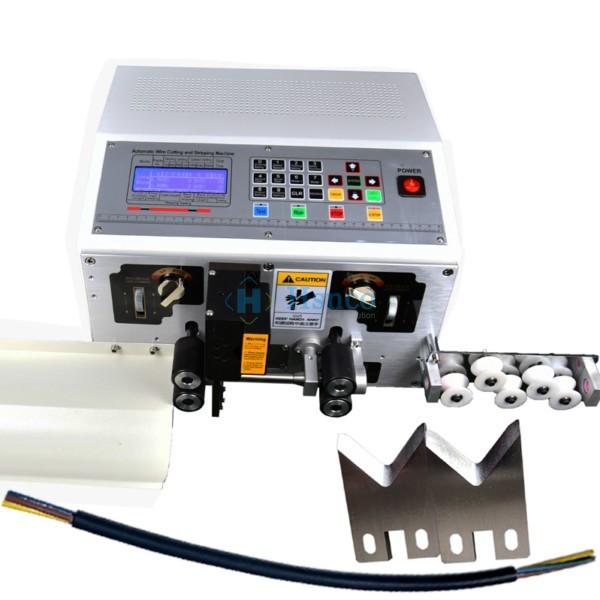

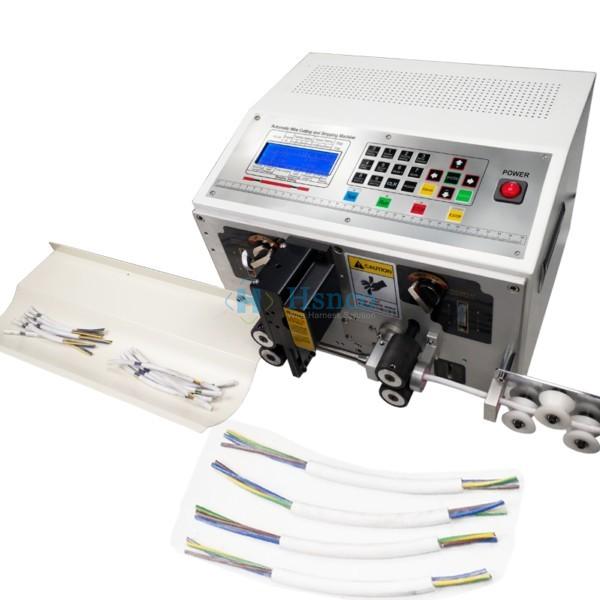

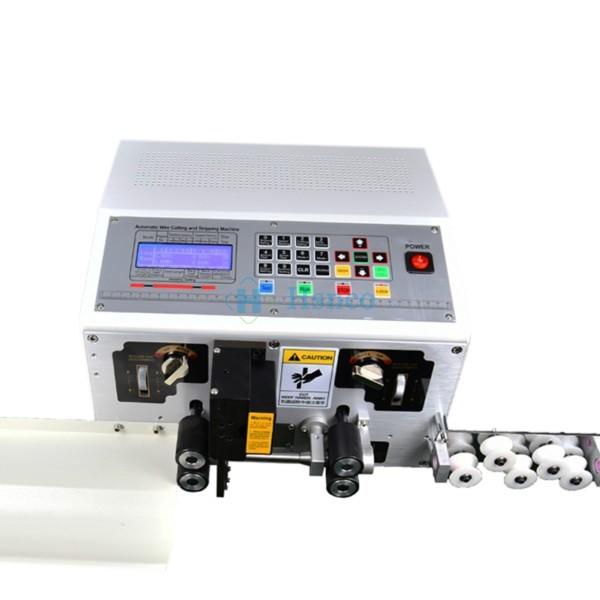

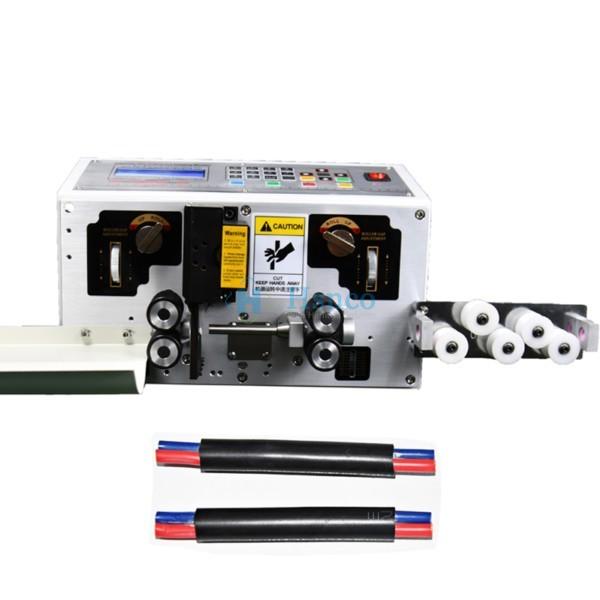

Automatic Single Core & Multi Core Outside Jacket Cutting & Stripping Machine HS-BX04

Automatic Single Core & Multi Core Outside Jacket Cutting & Stripping Machine HS-BX04

Model No.: HS-BX04
Wire Range: 1mm²- 10mm² / 2x0.5mm²-3x1mm² max cable O.D. 7mm
Cutting Length: 1-99999mm
Stripping Length: Front 1-150mm / End 1-80mm

Automatic Single Core & Multi Core Outside Jacket Cutting & Stripping Machine HS-BX04 1mm²- 10mm²

Product Specification:

Model No.	HS-BX04
Wire Range	1mm²- 10mm² 2x0.5mm²-3x1mm² max cable O.D. 7mm
Cutting Length	1-99999mm
Stripping Length	Front 1-150mm / End 1-80mm
Wire Guide Size I.D.	4mm, 6mm, 8mm, 10mm
Stripping Drive Mode	4 wheel drive
Wire Material	PVC
Blade	High speed steel
Speed Adjust	1-9
Power	AC220/50Hz AC110/60Hz
Tolerance	±0.2%*Length
Machine Weight	34kg
