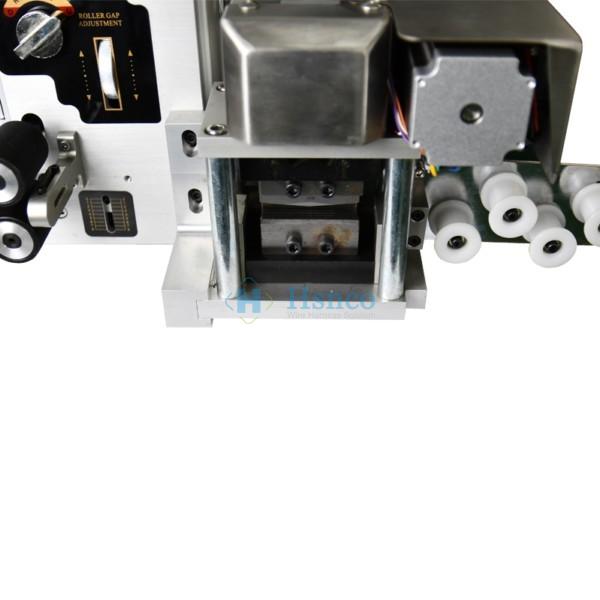

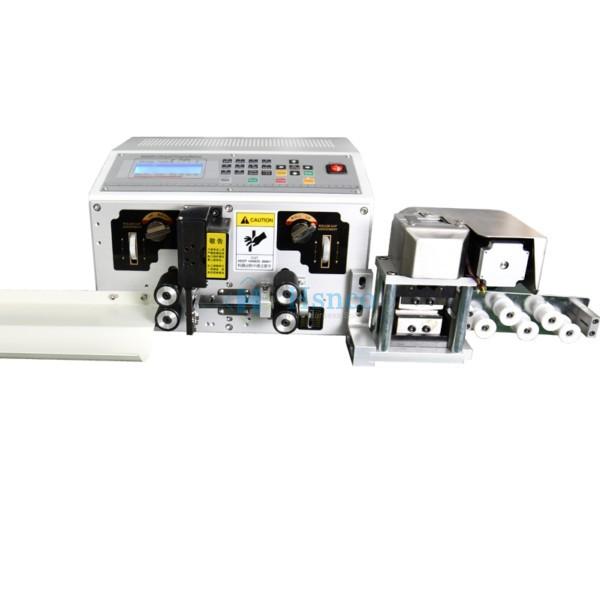

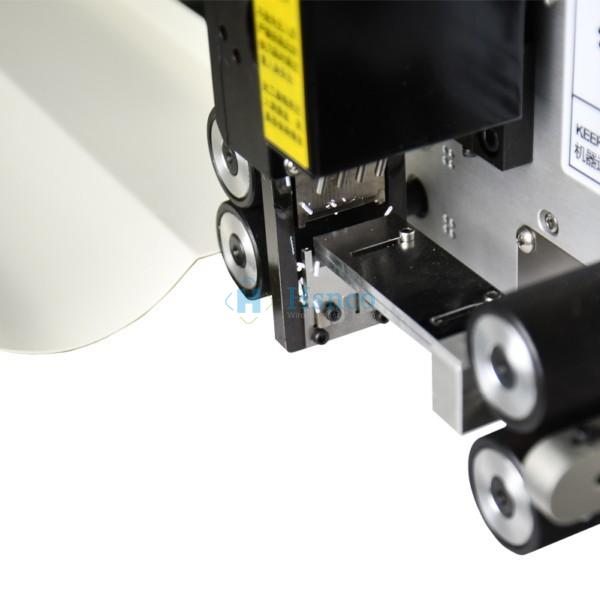

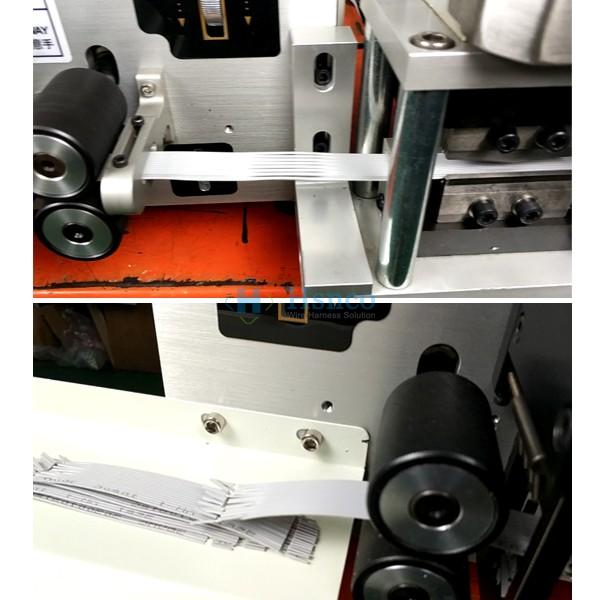

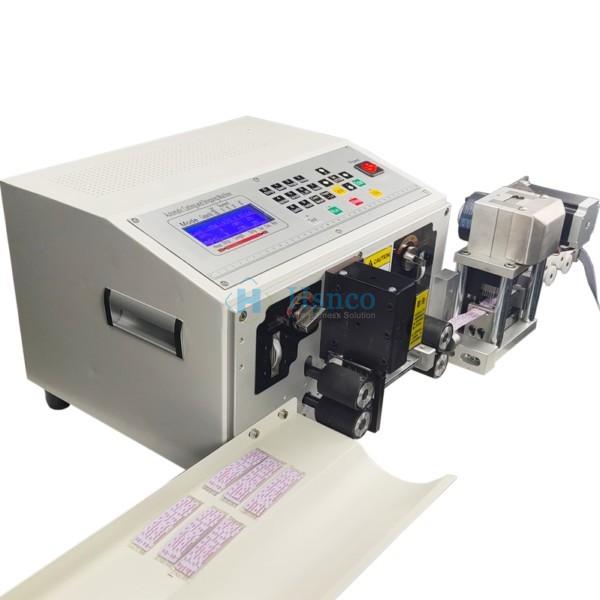

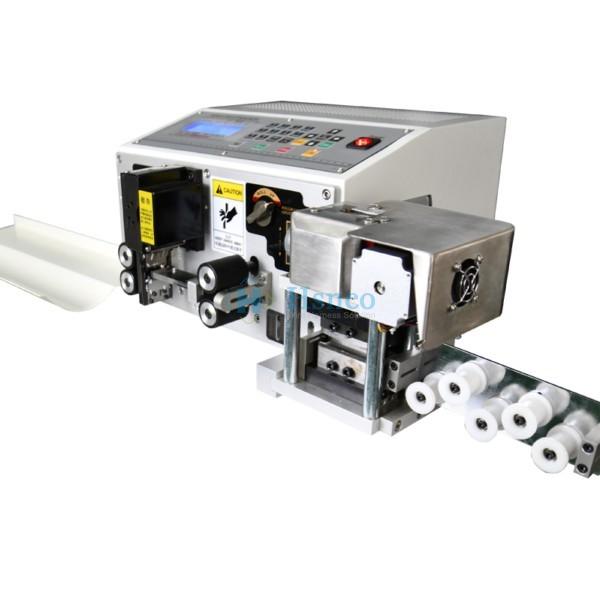

Automatic Ribbon Cable Cutting & Sliding & Stripping Machine HS-BX10

Wire Range

2Pin-12Pin / Max ribbon width: 20mm

Cutting Length

0-99999mm

Stripping Length

Front 1-30mm / End 1-30mm

Separate Length

front & end separate length in total 60-120mm

Wire Guide Size I.D.

Special for the flat cable

Sliding Drive Mode

By step motor up and down pushing

Stripping Drive Mode

4 wheel drive

Wire Material

PVC

Blade

High speed steel

Speed Adjust

1-9

Power

AC220V AC110V

Tolerance

±0.2%*Length

Machine Weight

40kg
